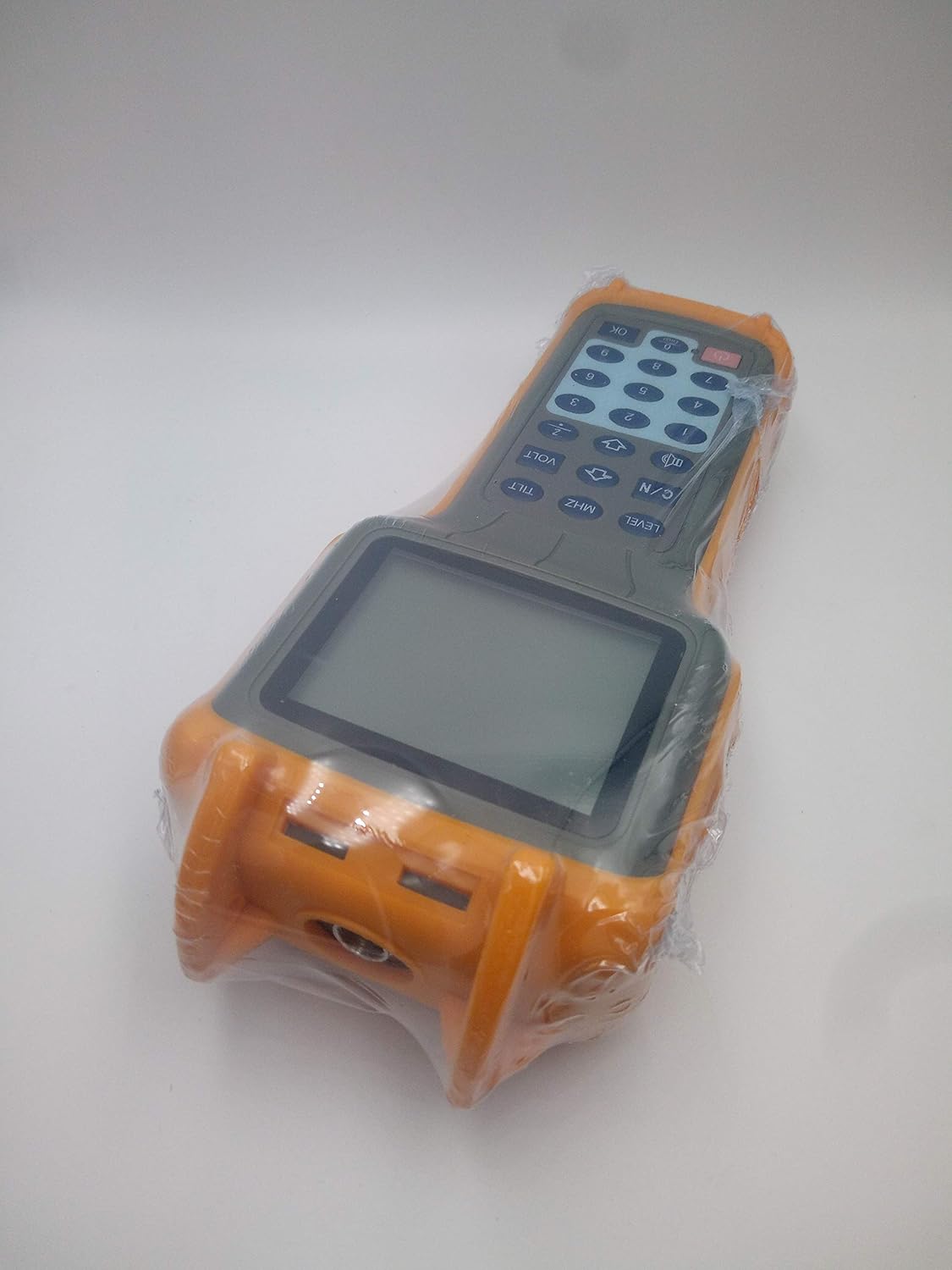

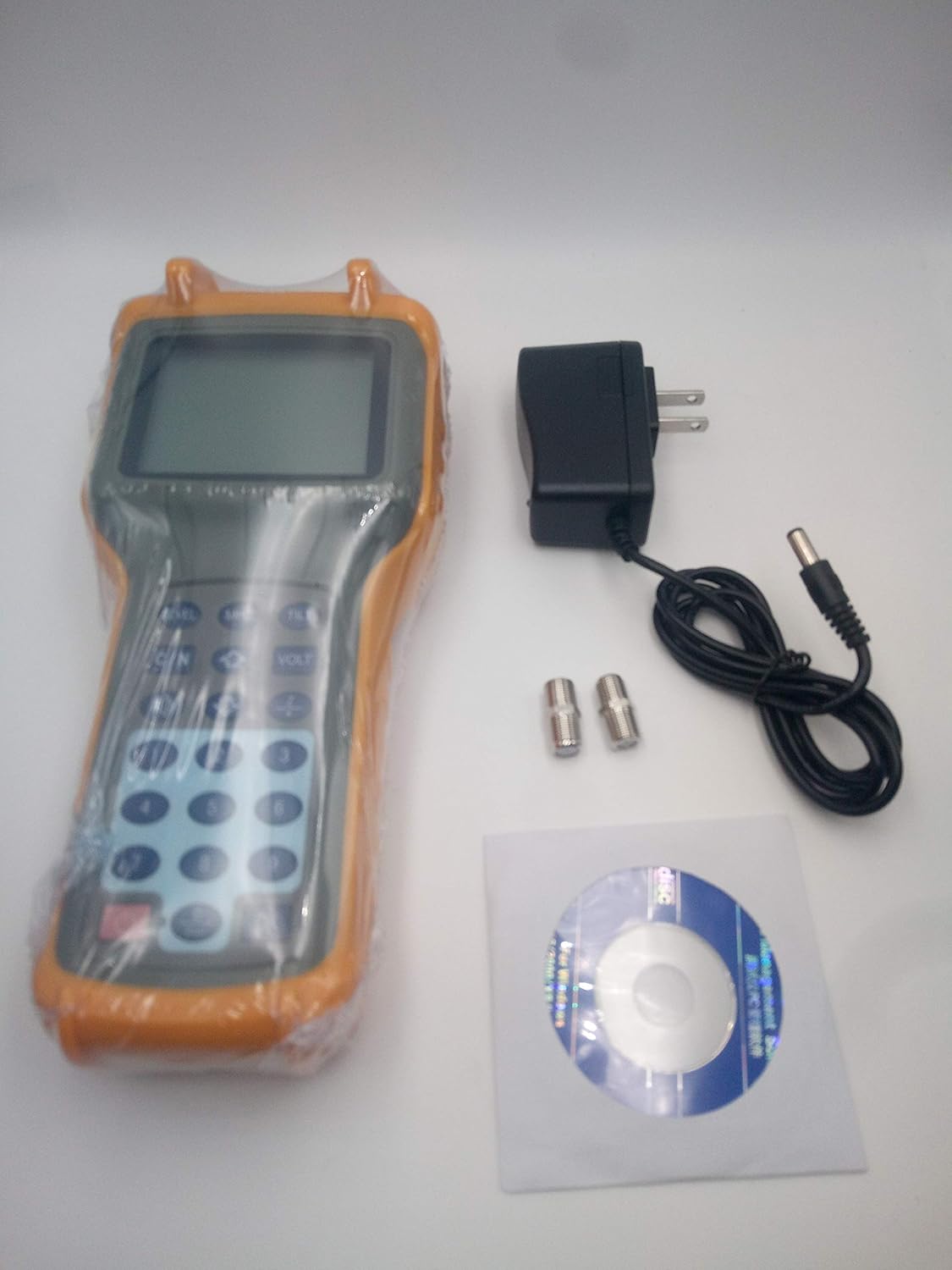

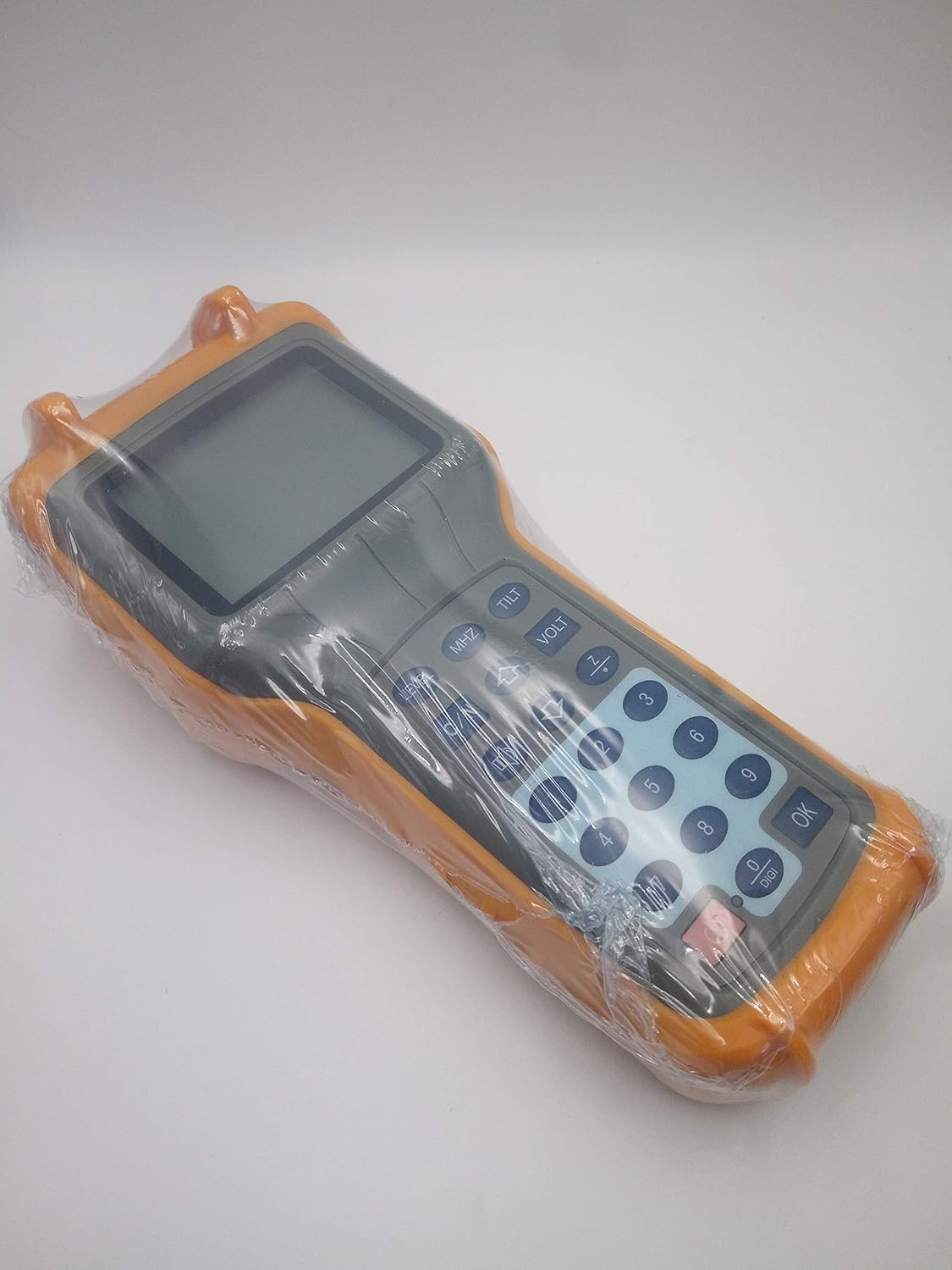

Digital Signal Level Meter Cable TV Tester 5~870MHz 30dBuV ~ 120 dBuV U285
Sale price
$20.95
Regular price $77.60
Skip to product information
High brightness backlight operating modes;
Clear LCD screens, dual-channel measurement display;
Convenient and Pragmatic;
Numeric keypad input for easy operation;
The lead time is about 3 business days, Fedex/DHL/UPS Shipping to USA is 4-7 days.
S110D Signal Level Meter is an instrument used for the construction and maintenance of analog TV / digital TV, and the measurement of TV signal level and power level.
It is widely applied in the routine maintenance of the CATV system.
S110D Signal Level Meter is compatible to both analog / digital channels, with strong comprehensive performances.
S110D is a compact, small light-weight portable signal level measuring
Technical Data
Model: RY-S110D
Doulbe channel, A/V, C/N, Average Power, Trunk line Voltage
Frequency / channel
Frequency scope: 5~870MHz
Channel: U.S. Standard Channel USA STD-CATV
U.S. digital standard channels USA STD-CATV
Frequency accuracy:+50 * 10E-6 (20 oC +5 oC)
Level measurement
Measuring range: 30dBuV ~ 120 dBuV
Measurement accuracy: +2dB (20 oC +5oC)
Resolution: 0.5dB
Carrier-to-noise ratio measurement
Measuring range: 20dB ~ 50 dB
Signal input range: >=85dBuV
Measurement accuracy: + 3dB (20oC +5oC)
Channel scan: 150
Voltage measurement
Input range: 1 ~ 100V (AC / DC)
Measurement accuracy: +2V
Resolution: 1V
Power supply
Battery: 7.2V/1500mAH rechargeable battery
AC Supply: AC 90V-220V 50Hz-60Hz
Working time: 6h
Charging time: 3h
