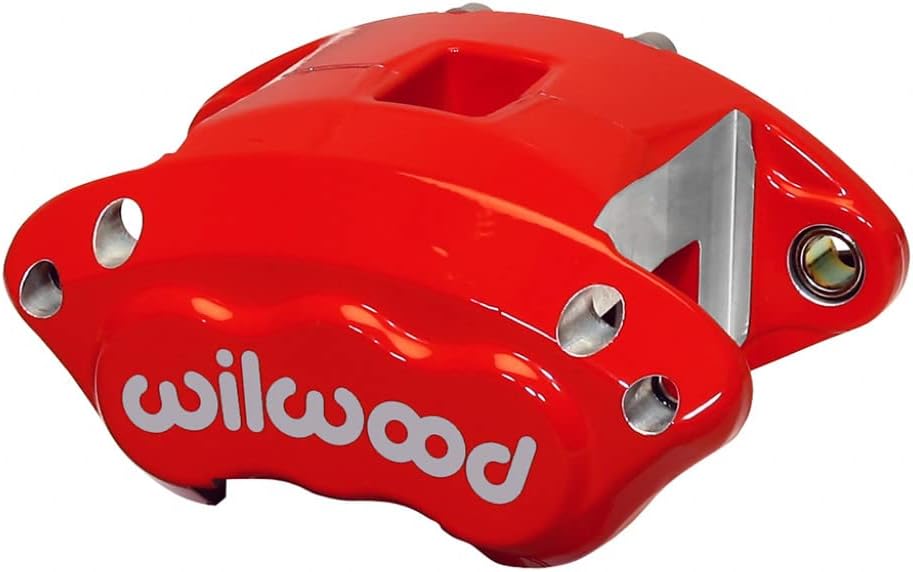

Red Caliper with 1.62/1.62in Pistons and 1.04in Disc F6063

Product Overview:
Wilwood's D154 Forged Billet Caliper Is A Direct Bolt-On, Lightweight, High-Strength, Extreme Duty Alternative To The Oe Cast Iron Calipers That Were Used On A Wide Range Of Factory Disc Brake Equipped Mid Size Gm Cars And Small Trucks Beginning In 1978. Use Of This Caliper Can Still Be Found On Some Gm Models As Late As The Year 2002. The Wide Spread And Affordable Availability Of D154 Calipers And Brake Pad Compounds Also Made It A Popular Choice In A Number Of Restricted Class Competition Categories And Drum To Disc Conversions On All Types Of Hot Rods And Street Machines.
Product Info:
Wilwood Caliper-D154-Red 1.62/1.62In Pistons 1.04In Discpiston Type: Stainlessmaterial: Aluminumfinish: Red Powder Coatmount Side: Universalmount Type: Floating
Manufacturer Part Number:
Part Number: 120-11872-Rd

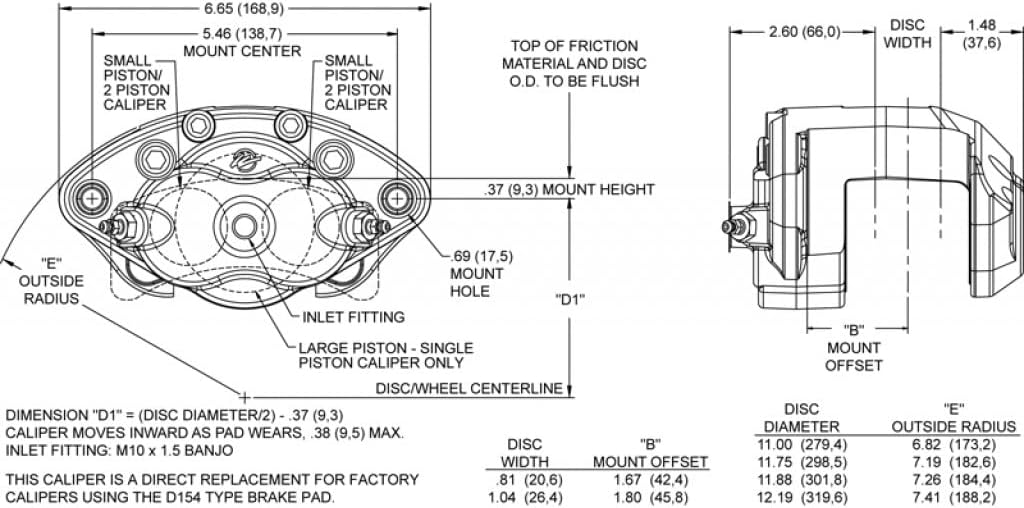

Specifications:
Pistonspiston Count: 2
Piston Area (In²): 4.12
Piston Type: Stainless
/ Boot: No

Rotor Dimensionsrotor Width (In): 1.04
Rotor Diameter (In): 12.19

Pad Dimensionspad Area (In²): 8.7
Pad Volume (In³): 2.9

Duty Rating & Materialmaterial: Aluminum
Weight (Lbs): 4.6

Colors & Finishcolor: Red
Finish: Red Powder Coat

Mountingmount Center (In): 5.46
Mount Side: Universal
Mount Type: Floating

Guarantees And Warranties:
30-Day Satisfaction Guaranteesee Manufacturer's Website For Most Accurate Warranty Information.
